Though well maintained, the complex was in need of extensive exterior rehabilitation. Harboe Architects teamed with Krueck and Sexton, the architects of record, to serve as Preservation Architect. The steel cladding was painted and windows cleaned. The travertine plaza, which was previously replaced in 1981, was reconstructed with new matching travertine. The lobby window walls, which were also replaced in 1981, were reconstructed due to damage of the substructure. The public lobbies were also restored.

860 - 880 Lake Shore Drive Apartments

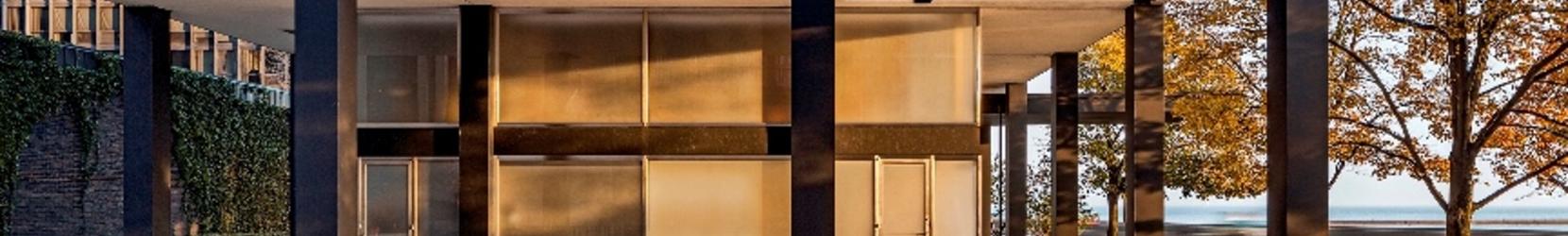

Built between 1949 and 1951, the residential towers at 860-880 Lake Shore Drive are one of the most important designs by modern architect Mies van der Rohe. The twin 26-story towers were the first designed by Mies to have steel cladding and represent an important precedent for his later high rise buildings. The exteriors are clad in black-painted steel with aluminum windows. The steel, though not structural, expresses the structural system and verticality of the towers and is devoid of any ornamentation. The towers are also significant for their arrangement on the trapezoidal site: set at right angles to each other to maximize lake views from each tower and connected by a monolithic canopy and travertine plaza. Ground floor lobbies are recessed behind structural pilotis and clad in large sheets of glass, some clear and some sandblasted. 860-880 is listed on the National Register of Historic Places and is a Chicago Landmark.

Title 860 - 880 Lake Shore Drive Apartments
Work Completed Exterior facade restoration, plaza reconstruction, lobby restoration
Date Completed 2010
Client Cotter Consulting, Inc.
Location Chicago, Illinois
Contractor Bulley and Andrews, LLC
Architect of Record Krueck & Sexton
Engineering & Testing Wiss, Janney, Elstner Associates, Inc.

Project Information
